Accessories

 jumper handle  |  jumper comb  |  cover  |  meter pins  |  pin assembly gauge
meter pin magazine  |  voltage tab  |  long nut |  tool cases & free demo sets

jumper handles

Jumper handle 80A ZSK
Art. Nr. A00-909
Jumper handle 80 A for meter plug terminal pluggable (MPTP)
  • 80 amperes
  • With increased touch protection
  • With locking
  • Pin assembly gauge available separately
  • Robust and easy to handle
  • In a practical soft case
  • E no. 169900119 / EAN 7640343358531
Jumper handle 80/100A ZAK
Art. Nr. A00-900
Jumper handle 80/100 A for meter plug terminal (MPT)
  • 100 amperes
  • With touch protection
  • With locking
  • Integrated pin assembly gauge
  • Robust and easy to handle
  • In a practical soft case
  • E no. 169900109 / EAN 7640343358418

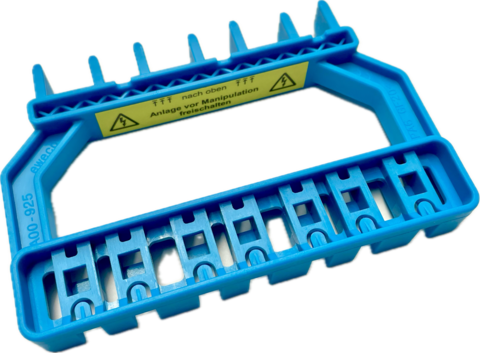

Relaxation Handle

Relaxation Handle eweco
Art. Nr. A00-925
  • for mounting meters on a meter plug-in terminal
  • does not bridge any current and is only used for initial mechanical mounting
  • only to be used with the meter plug terminals from eweco: EWC961-80
  • made of PA6 (FR) / light blue
  • incl. meter pin mounting gauge 16/13mm (5mm)
  • robust and handy
  • E-No. / EAN (follow)

jumper comb: robust and easy to handle

Jumper comb
Art. Nr. A00-915
  • Jumper comb, 100 A
  • Compatible with all meter plug terminals and meter plug terminals pluggable from eweco
  • Compatible with the eweco cover
  • Contact jumpers made from copper
  • Robust and easy-to-handle housing
  • E no. 169900129 / EAN 7640343358432

cover: universal and stackable

Transparent cover eweco
Art. Nr. A00-907
  • Transparent cover
  • Universally suitable with almost all currently available meter plug terminals and meter plug terminals pluggable (63 A, 80 A and 100 A)
  • Products can be stacked
  • Sealable
  • Sealing screws with Torx/slotted combination screw for efficient mounting
  • Glow-wire tested up to 930°C
  • E no. 169900029 / EAN 7640343358210

meter pins: round or square

Meter pins, 100A round
Art. Nr. A00-901
  • Meter pins, 100 A, 6/7/45 mm, round
  • Set each with 7 pieces
  • Copper, silver-plated
  • with position notch
  • exclusively for EWC901-100-2N
  • only to be used for applications above 80 to 100 amperes
  • E no. 169900099
Meter pin 80 A, 5x5 mm, square
  • Meter pin 80 A, 5x5 mm, square
  • Different lengths
  • Copper, tin-plated
  • Compatible with eweco terminals
Art. no.Designationeweco terminalE no.EAN
A00-906

Meter pin, 80 A, 5x5x45 mm, square, Cu
(standard)

standard pin for the orange AND black eweco terminals

EWC901-80
EWC961-80-1N/2N

1699000897640343358517
A00-937

Meter pin, 80 A, 5x5x37 mm, square, Cu
(special)

only use in combination with orange terminal AND Kamstrup OMNIPOWER meters necessary

EWC901-80169900069

Meter Pin Magazine

meter pin magazine
Art. Nr. A00-951
  • including 7 meter pins, 45x5x5mm, 80A
  • Suitable for almost all electricity meters
  • no need to use the assembly gauge
  • only fits for EWC961-80-1N & 2N
  • efficient and safe pin mounting on the meter
  • Risks are minimised - incorrect installation is quickly detected: If a screw on the meter is accidentally not tightened, the meter pin remains in the magazine and the error is quickly recognised.
  • The pin magazine is reusable.
  • EAN 7630881801231
  • YouTube-Link on the topic: Link

Pin assembly gauge for square pins 5x5 mm

Pin assembly gauge for square pins 5x5 mm; 21mm
Art. Nr. A00-920
  • Pin assembly gauge for square pins 5x5 mm
  • For efficient pre-mounting of the pins on the meter
  • 13/16 mm distances in accordance DIN 43857-2
  • Incl. leaf springs which hold the pins during mounting
  • Not necessary for EWC901 meter plug terminal as already integrated into A00-900 jumper handle
  • Easy to handle and robust
  • E no. 169900039 / EAN 7640343358524

3-phase voltage tap for attaching to the meter plug terminals

Voltage tab
Art. No. A00-911 (ZAK A00-100/121)
Art. No. A00-916 (ZSK A00-600/601)
  • Voltage tap for 1 tap per phase and neutral conductor
  • easy to mount on any eweco meter terminal
  • max. current: 0.5 A, 230 VAC
  • connections 0.2 - 2.5mm2
  • compatible with every eweco terminals
  • fits under the usual meter covers

Long Nut M5x24mm, Torx20/slotted, Steel, zinc plated

Long Nut M5x24mm
Art. No. A00-530
  • for simple and efficient fastening of the meter plug terminals on terminal boards with M5 fastening bolts (instead of screws)
  • Torx 20 drive, slotted
  • Steel, galvanised
  • compatible with the meter plug-in terminal from eweco
  • Check out more information about the long nut on YouTube: Link

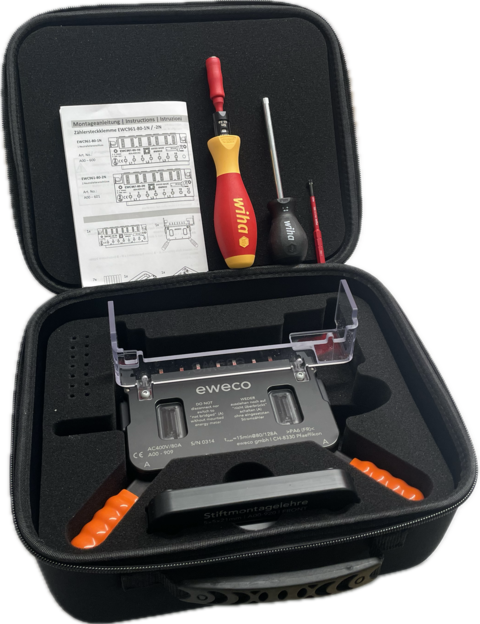

Tool case with jumper handle and torque tool for MPTP

Tool case with jumper handle and torque tool for MPTP
Art. No. A00-914
  • Robust tool case
  • Jumper handle for MPTP incl. touch protection
  • Torque screwdriver 0 - 5Nm
  • Pin assembly gauge 5x5 mm, 21 mm
  • E no. 169900059

Tool case with jumper handle and torque tool for MPT

Tool case for meter connection terminal
Art. No. A00-913
  • Robust tool case
  • Jumper handle for MPT incl. integrated pin assembly gauge
  • Torque screwdriver 0 - 5Nm
  • E no. 169900049 / EAN 7640343358425

Free demo set for meter plug terminal pluggable (MPTP) *

Demo set for meter plug terminal pluggable (MPTP)
Art. No. A00-151
  • An EWC961-80-2N meter plug terminal pluggable for testing
  • Jumper handle, lockable, with very high touch protection
  • Pin assembly gauge 5x5 mm, 21 mm
  • 7 meter pins or pin magazine incl. 7 pins
  • In a soft case
  • E no. 169900019
  • * free demo set for Swiss electricity companies; please return after testing. Are you interested?

Free demo set for meter plug terminal (MPT) *

Demo set for meter plug terminal (MPT)
Art. Nr. A00-150
  • An EWC901-80 meter plug terminal for testing
  • A jumper handle, lockable, with touch protection, with insulated jumpers
  • 7 meter pins
  • In a soft case
  • E no. 169900009
  • * free demo set for Swiss electricity companies; please return after testing. Are you interested?
